Insulation Kapton Polyimide Tape 33/66m Heat Resistant No Residue Easy Peel

Basic Information
Place of Origin: Changzhou,Jiangsu,China(mainland)
Brand Name: YAHEA
Certification: As You Required
Model Number: YH-PA
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton / wooden box package
Delivery Time: 5-8 working
Payment Terms: Negotiation, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800000㎡ Per Month
Detail Information
Name: Insulation Polyimide Film Tape Material: Polyimide Film+Acrylic Adhesive, Silicone
Color: Amber/Golden Thickness: 0.06mm,0.08mm Etc
Width: 1mm---500mm Rated Voltage: 600v
Short-term Temperature Resistance: >300℃ Long-term Temperature Resistance: >250℃
Length: 33m /custom Break Down Voltage: 1000-10000v
Adhesive: Silicone\Acrylic Use: Bag Sealing
High Light:

polyimide heat resistant high temperature adhesive tape

,

polyimide adhesive tape


Product Description

Insulation Polyimide Film Tape, 33/66M ,Heat Resistant No ResidueEasy Peel



Product introduction



Polyimide PI Film tape,polyimide film as a substrate,coated on one side of high performance silicone pressure-sensitive adhesive.There are sinlge-sided fluoroplastic from composite materials with or without composite types of materials.Coating precision of 2.5um,no scartches,drawing,and other phenomena,good shear resistance,easy die-cutting excellent heat-resistance and solvent resistance.



Product Features



Provide excellent electrostatic dissipation

Provide high temperature resistance

leave no adhesive residue after remove



Product Paramete



Name Insulation Polyimide Film Tape
Material Polyimide Film+Acrylic Adhesive, silicone
Color Amber/Golden
Thickness 0.06mm,0.08mm etc
Width 1mm---500mm
Length 33m or custom
Adhesive siliconeAcrylic
Adhesive Type Pressure Sensitive
Short-term temperature resistance >300℃
long-term temperature resistance >250℃
Break down voltage 1000-10000v
Usage transformer, temperature resistance, cable, ESD Protection, Golden finger

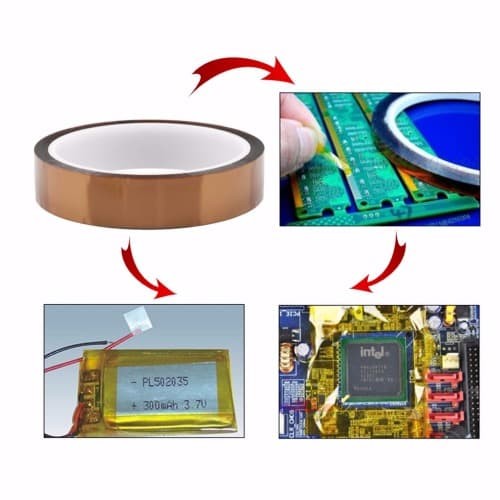

Product application



Widely used as high temperature insulation winding of transformers, motors, coils, capacitors and variable frequency power supply in electronic industry.

It is suitable for shielding and protecting golden finger in PCB, SMT tin furnace and wave soldering process.

Special thickness or combinations can be supplied according to customer.

Products can be supplied in roll, tape according to customer requests.



                                             Insulation Polyimide Film Tape



Insulation Kapton Polyimide Tape 33/66m Heat Resistant No Residue Easy Peel 0



Insulation Kapton Polyimide Tape 33/66m Heat Resistant No Residue Easy Peel 1



Insulation Kapton Polyimide Tape 33/66m Heat Resistant No Residue Easy Peel 2Insulation Kapton Polyimide Tape 33/66m Heat Resistant No Residue Easy Peel 3
