| Place of Origin: | Changzhou,Jiangsu,China(mainland) |
|---|---|
| Brand Name: | YAHEA |
| Certification: | As You Required |
| Model Number: | YH-PA |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton / wooden box package |
| Delivery Time: | 5-8 working |
| Payment Terms: | Negotiation, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 800000㎡ Per Month |
| Name: | PI Silicone Tape | Material: | Polyimide Film+Silicone Adhesive |
|---|---|---|---|
| Color: | Brown Or Amber Color | Thickness: | 0.025~1.5mm、 Custom |
| Width: | 2mm-500mm | Length: | 33m Or Custom |
| Short-term Temperature Resistance: | Silicone | Long-term Temperature Resistance: | 300℃ |
| Break Down Voltage: | 250℃ | Adhesive: | Silicone |
| Use: | Masking, Bag Sealing | ||
| High Light: | polyimide heat resistant high temperature adhesive tape,polyimide adhesive tape |
||
PI Silicone Tape Kaptons Polyimide Adhesive Tape 0.1MM*33M,Custom
Product introduction
Polyimide tape ,commonly known as high temperature tape and gold finger tape, is made of polyimide film coated by pressure sensitive adhesive. Polyimide tape is divided as PI silicone tape and PI acrylic tape by the type of adhesive. In general PI tape is in black and tawny colors.
Product Features
1).Heat resistant tape is a polyimide film tape with a high temperature resistant adhesive.
2).Suitable for wave soldering shield of electronic circuit board, protection of gold finger and electrical insulation, motorinsulation, and positive and negative pole of lithium battery.
3).Ideal for protecting sensitive printed circuit board (PCB) components such as gold leads and gold fingers during the process of wave soldering.
4).Also extensive use as electrical insulation for transformer, motor, coil, capacitor and frequency conversion power supply in electronic industry.
5).Maximum heat resistance: 500 ℉ (260℃)
Product Parameter
| Name | PI Silicone Tape |
| Material | Polyimide Film+Silicone Adhesive |
| Color | Brown or Amber color |
| Thickness | 0.025~1.5mm, custom |
| Width | 2mm-500mm |
| Length | 33m or custom |
| Adhesive | Silicone |
| Short-term temperature resistance | 300℃ |
| long-term temperature resistance | 250℃ |
| Break down voltage | 1000-10000v |
| Usage |
1.3D printing, PCB Gold Finger Prtection 2.Heat Resistance range up to 260 Celsius 3.Insulation up to 7KV for motors and coils 4. Lithium battery packing |
Product application
Mask for printed circuit boards during wave solder or solder dip process, protect specific areas of PCB

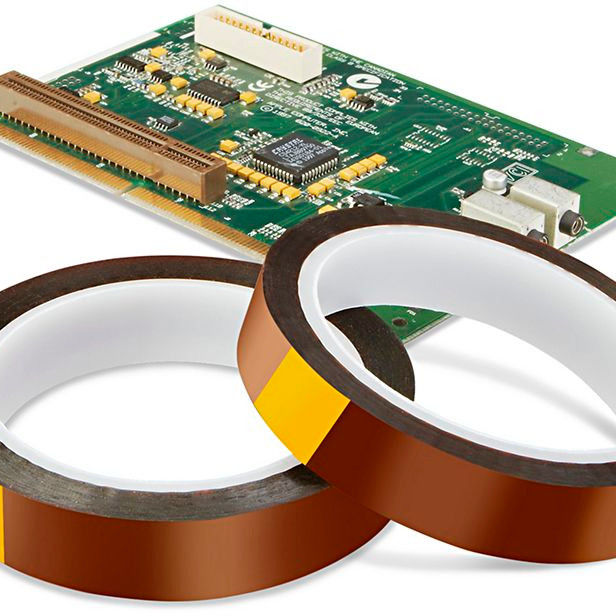

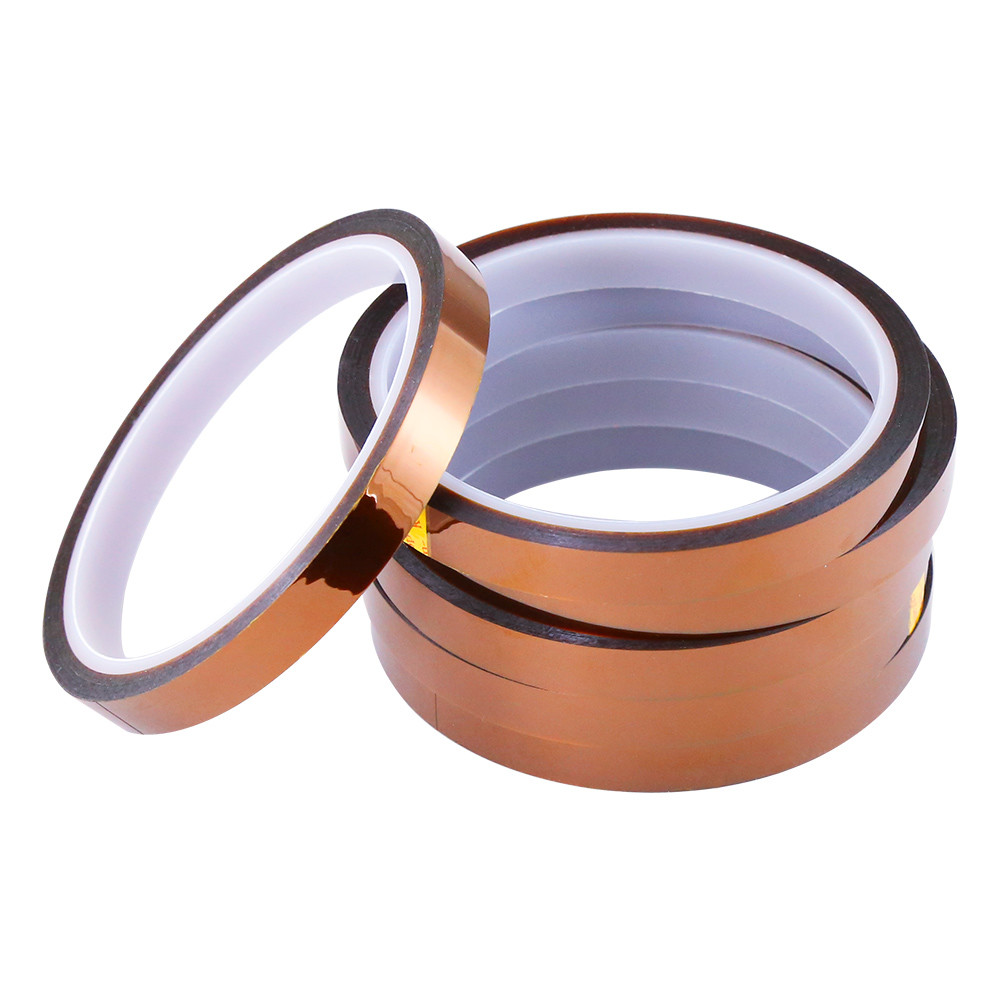

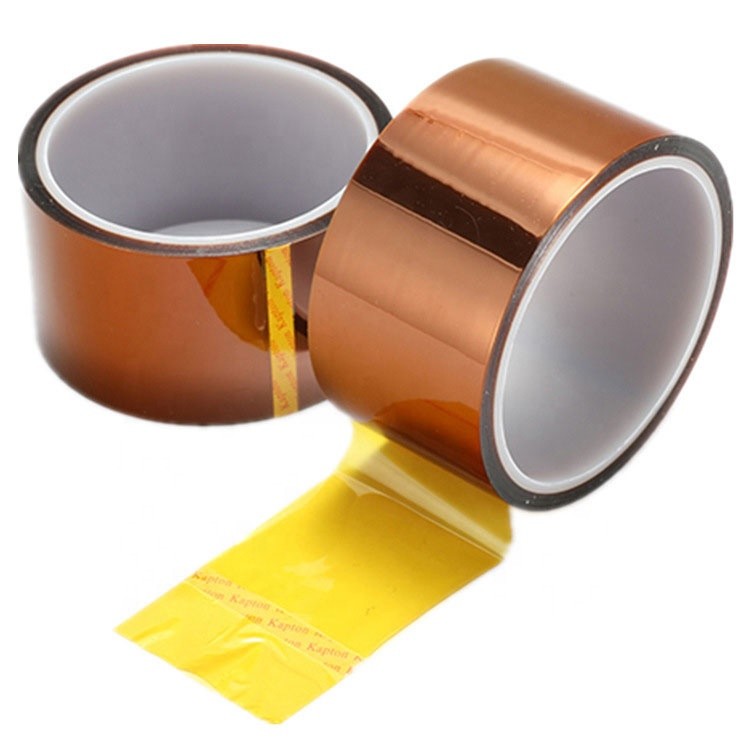

PI Silicone Tape
PI Silicone Tape application
