| Place of Origin: | Changzhou,Jiangsu,China(mainland) |
|---|---|
| Brand Name: | YAHEA |
| Certification: | As You Required |
| Model Number: | YH-HO |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Hard Carton:158*14*12cm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | Negotiation, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 rolls per month |
| Name: | Holographic Projection Film | Material: | PET |
|---|---|---|---|
| Color: | Transparent | Feature: | High Contrast |
| Transmittance: | 22%~92% | Thickness: | 100-125 Um |
| View Angle: | 120-150° | ||
| High Light: | transparent projection screen film,sticky screen rear projection film |
||
Introduction
Projection film is a new generation of display equipment, which has many incomparable advantages such as high definition, strong light resistance, ultra-thin and thin, and anti-aging. Molecular-level nano-optical components: Holographic color filter crystal (HCFC) as the core material, fusion of nanotechnology, materials science, optics, polymer and other multi-disciplinary achievements and preparation and processing technology fine.
Holographic Projection Film
Types of different projection film
White : self adhesive
Grey : self adhesive, high contrast
Dark Grey : self-adhesive, high contrast
Clear : self-adhesive, holographic effect
Ultra Black : vivid color realization
Characteristics
▷ Made of PET film not PVC, no shrinkage with stable shape against sunlight or heat.
▷ Wide size of screen due to its width of 60''(1524 mm).
▷ Adopted removable adhesive for less bubble problem for applications other than glass.
▷ Realizing excellent images by adopting special optical co polymer.
| Test Item | Unit | White | Grey | Dark Grey | Clear | Ultra Black |
| Thickness | ㎛ | 100 | 100 | 100 | 100 | 125 |
| Transmittance | % | 92 | 81 | 54 | 88 | 21 |
| Haze | % | 93 | 93 | 95 | 33.5 | 98 |
| Gain | - | 6 | 4 | 3 | 5 | 3 |
| View angle | ° | 150 | 120 | 120 | 150 | 150 |
| Contrast | 200:1 | 300:1 | 400:1 | 500:1 | ||
| Hardness | H | 2 | 2 | 2 | 3 | 2 |
| Features | - | Normal | High Contrast | High Contrast | Wide view angle | Natural color expression |
| UV cut | % | 99 | 99 | 99 | 99 | 99 |
|
Applications |
- |
Indoor | Outdoor | Outdoor |
holographic effect |
Outdoor |
|
Shop window, Home cinema, Presentation |
Advertising window, Home cinema, Pubs | Advertising window, Home cinema, Pubs | Window information, Advertising display | Advertising window, Home cinema, Pubs |

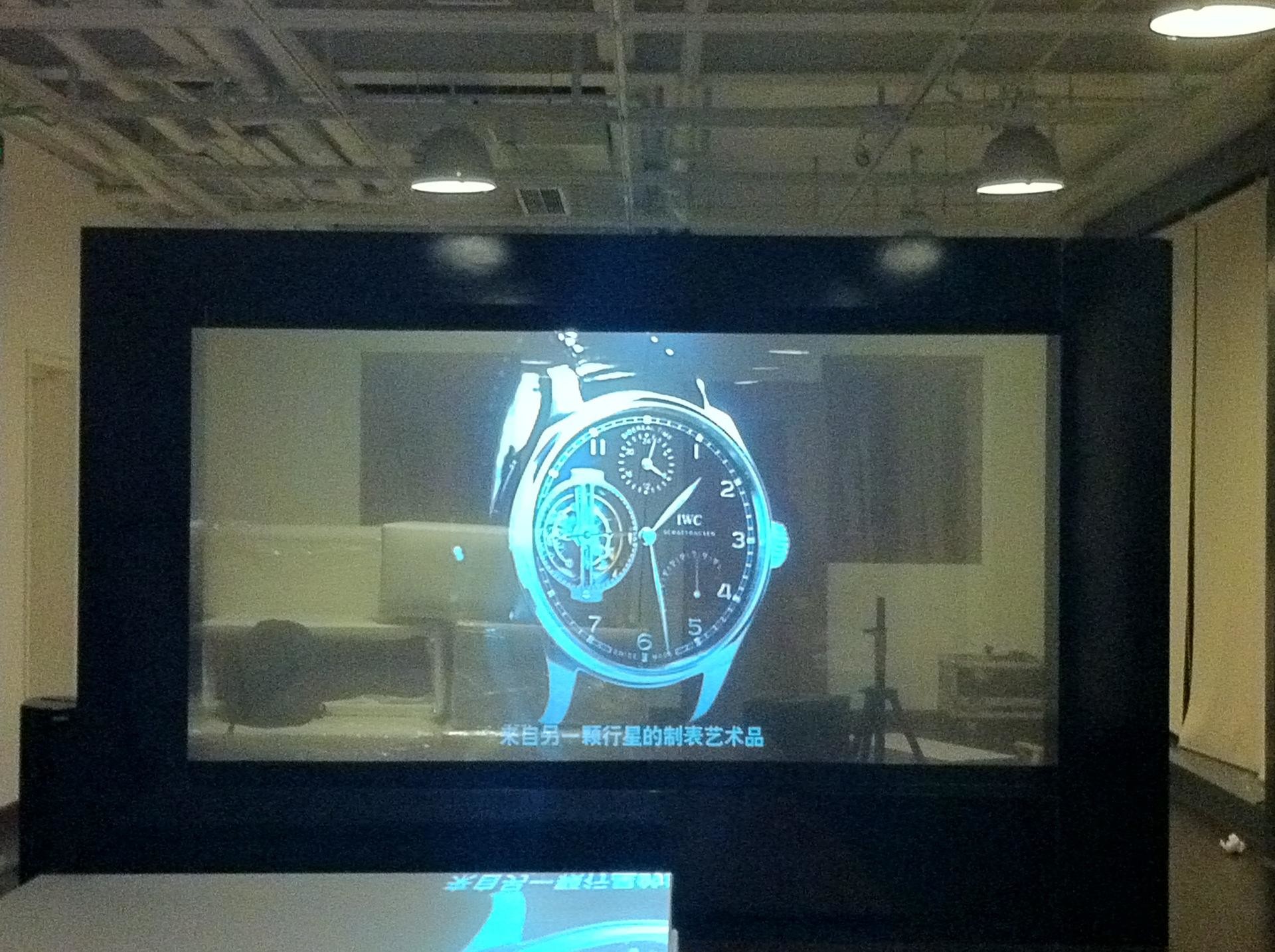

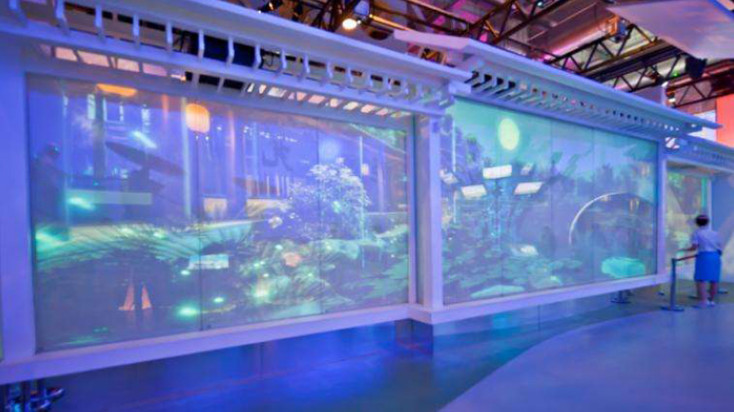

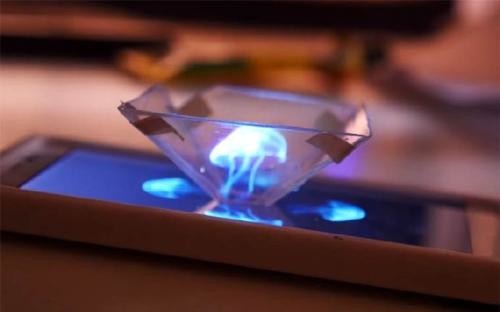

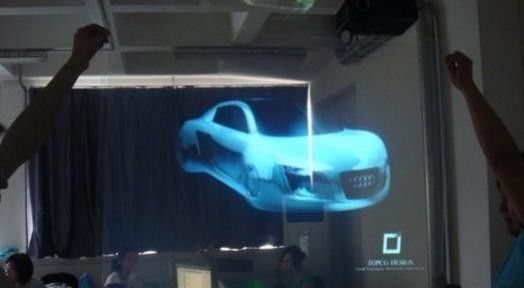

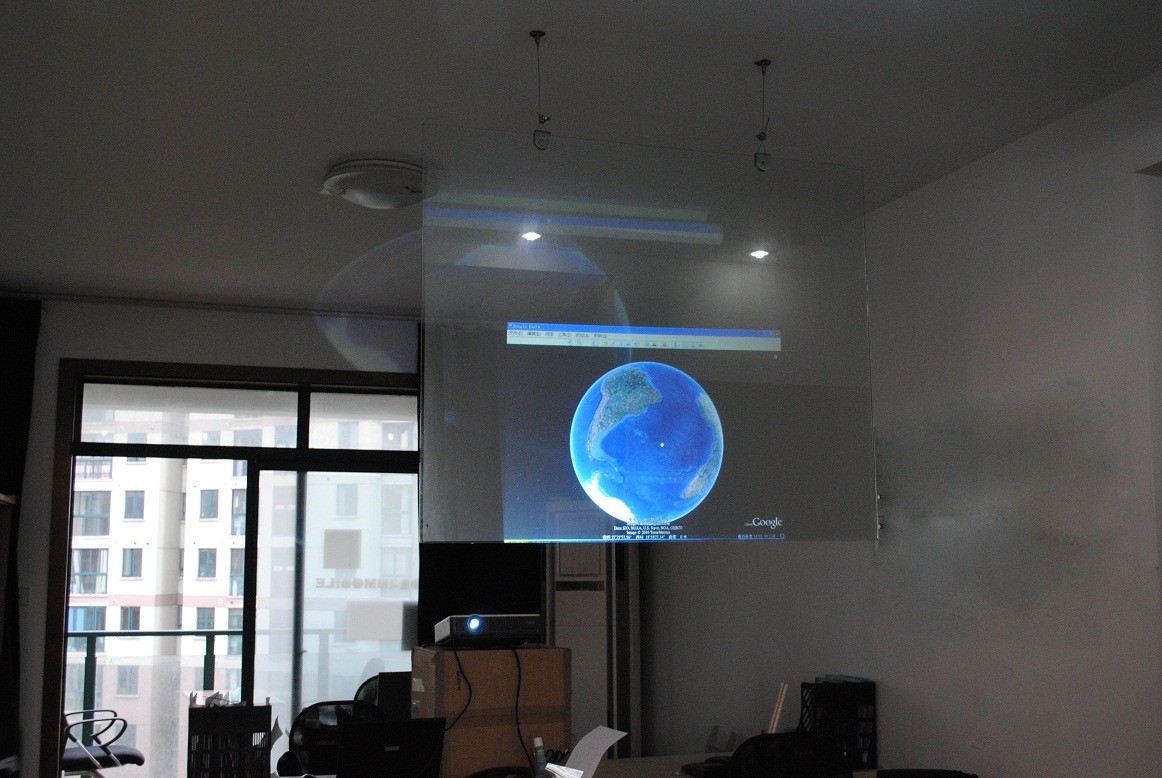

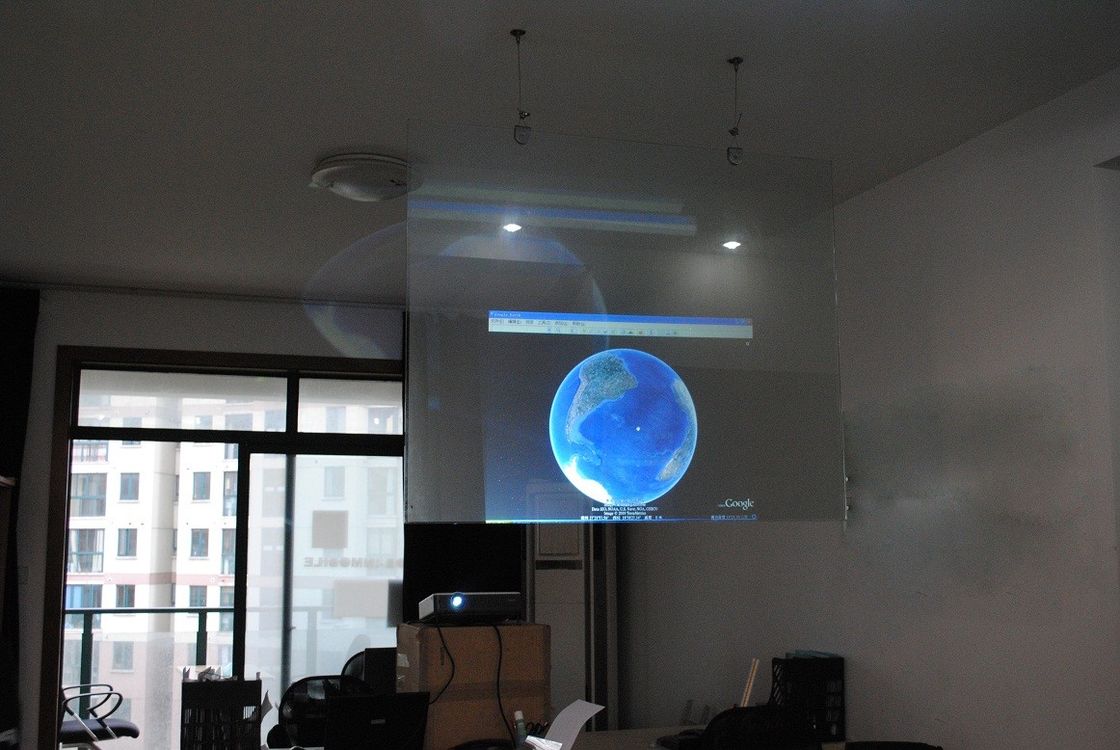

Effect show
Installation method:
You stick the rear projection film like a car stick one film on glass. the first, you need to clear the glass with water, spray Sprite drink on glass again (we recommend use Sprite drink to stick the film and make better projection show.)
and the rear projection film has two layers.then you can remove the protected layer and stick film on glass and adjust the film position, then you can use rubber squeegee to squeegee the water from center to the edges and when you make sure there is no water between the glass and film.
Packing
Several square meters of products are packed in high-hardness PE tubes. The single finished product is packed in white neutral carton plus a yellow Kraft carton. The transportation process is not easy to be damaged.
Delivery
We have years of experience in export products, good production, inventory, logistics management experience, according to the contract requirements on time delivery.
